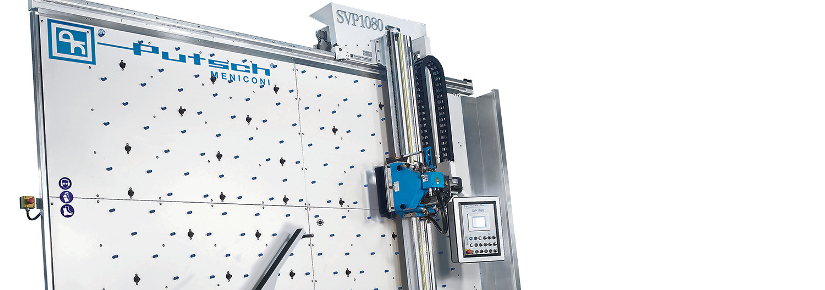

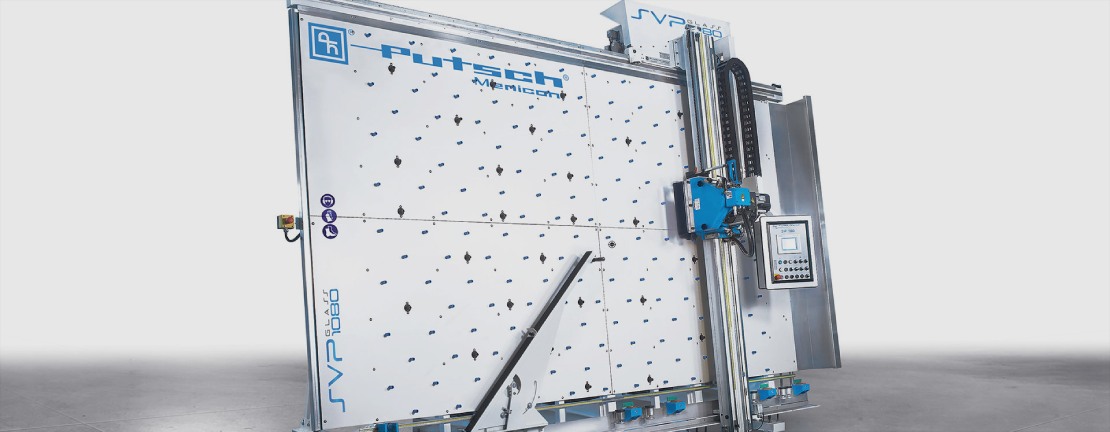

SVP 1080 Vertical Glass Saw

Working world-class glass fabricators such as Pilkington, Trulite, Schott, AGC and Saint Gobain, The Putsch® SVP 1080 is the most cost-effective way to perform X and Y cuts on thick multi-laminates such as bulletproof, hurricane impact and fire-resistant glass. The Putsch® SVP 1080 glass saw saves valuable floor space, integrates smoothly with existing workflow, and is simple to maintain.

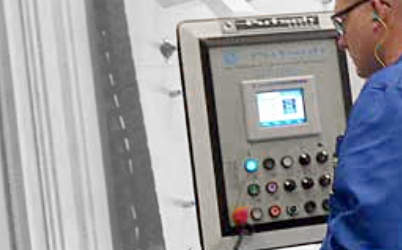

Programmable control interface
Programmable Interface (see: ~2:53 in video below)

The SVP 1080 can be operated manually for small batch cutting or can be set to semi or fully automatic operation. Using the control panel the operator has complete control over every action; from the speed of travel to the coolant flow rate. The touch screen can store and quickly recall programmed cut quotes, and the zero point can be established anywhere on the grid for faster set-up and cycle time.

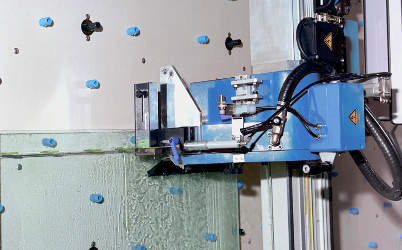

Making a horizontal cut
Automatic shim dispenser operating on a horizontal cut (see: ~2:32 in video below).

The glass saw features a pneumatic shim dispenser to hold trimmed parts during horizontal cuts and glass clamps to help hold trimmed parts. Putsch®-Asheville can fabricate a coolant recycling tank to capture and reuse coolant, that also acts as filter to collect glass or marble particulate.

We invite your company to send us sample glass for test cutting and documentation. If you would like to visit our technical center, or have a Putsch® representative visit your facilty, please call 828-684-0671 or email info@putschusa.com.



See it in Action

Technical Highlights

Dimension Standard Frame Large Frame XL Frame
Vertical Cutting Height 99.21” (2,520 mm) 107.08” (2,720 mm) 130.70” (3,320 mm)
Horizontal Cutting Length: 125” (3,200 mm) 200.78” (5,100 mm) 274.80” (6,980 mm)
Frame Width: 64.6” (1,640 mm) 64.6” (1,640 mm) 64.6” (1,640 mm)
Overall Dimensions: 137.79” x 173.2” (3500 mm x 4400 mm) 145.66” x 248.42” (3700 mm x 6310 mm) 170.86” x 318.89” (4340 mm x 8100 mm)
