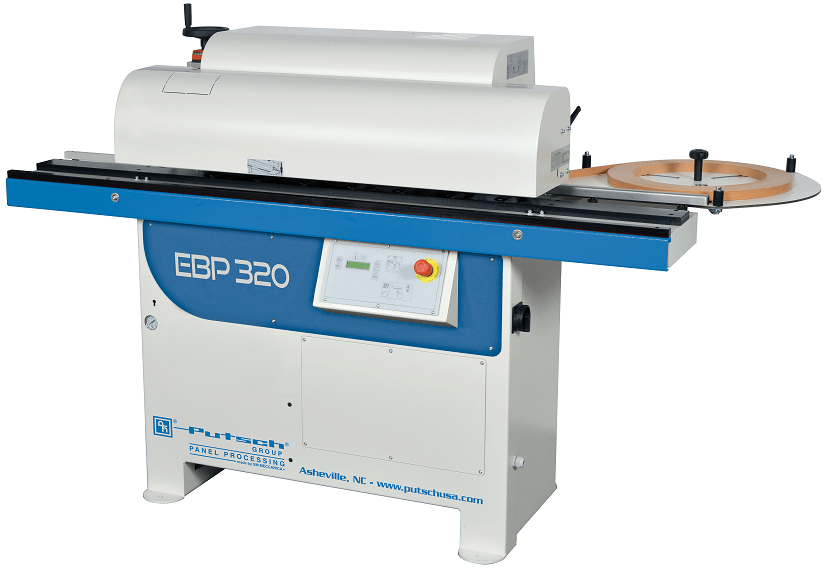

EBP 320 Edgebander

The EBP 320 is our most basic edgebander that is a welcome addition in any small workshop. This highly compact unit (81 in. x 38 in.) is capable of handling 0.4 to 2 mm thick tape. Made for fast start-up with a quick-heating Teflon-coated glue pot, the machine delivers front-and-back as well as top-and-bottom trimming. The EBP 320 is available in both three and single-phase (at additional cost).

Panels are pulled by a steel-reinforced toothed belt over aligning rollers that help to keep the panel flush against fence during operation. The 1800 mm long work table is covered with scratch-resistant phenolic strips and there is a front extending support to help carry larger panels. Banding is cut from the coil via a pneumatic shear.

Three pressure rollers evenly apply the banding to the glued edge, and the front and rear edges of the banding are cut using a pneumatic end trim unit. The top-and-bottom flush trim unit has 75 mm cutters (with disposable knives) that offer a straight / 2 mm radius / 15° bevel. The flush trim unit also includes 120 mm scratch-resistant vertical disc copiers that are ideal for delicate finishes.

An optional mobility kit with caster wheel and t-handle provides the flexibility to store the unit out of the way when not in use.

General Technical Data

Feature Specs
Feed Speed 7 m/min
Panel Thickness 10 mm – 45 mm
Edge Thickness in Coils on Panel 0.4 mm – 2 mm
Flush Trimming Motor 0.37 kW
Minimum Panel Length (Side Being Processed) 220 mm
Minimum Panel Width 110 mm
Compressed Air Operating Pressure 6.5 bar
Compressed Air Consumption During Operation 90 NL/min
Dust Extraction Outlet Connections 120 mm
Minimum Air Flow at Dust Extraction Outlets 20 m/s
Air Consumption of Dust Extraction System 850 m3/h
